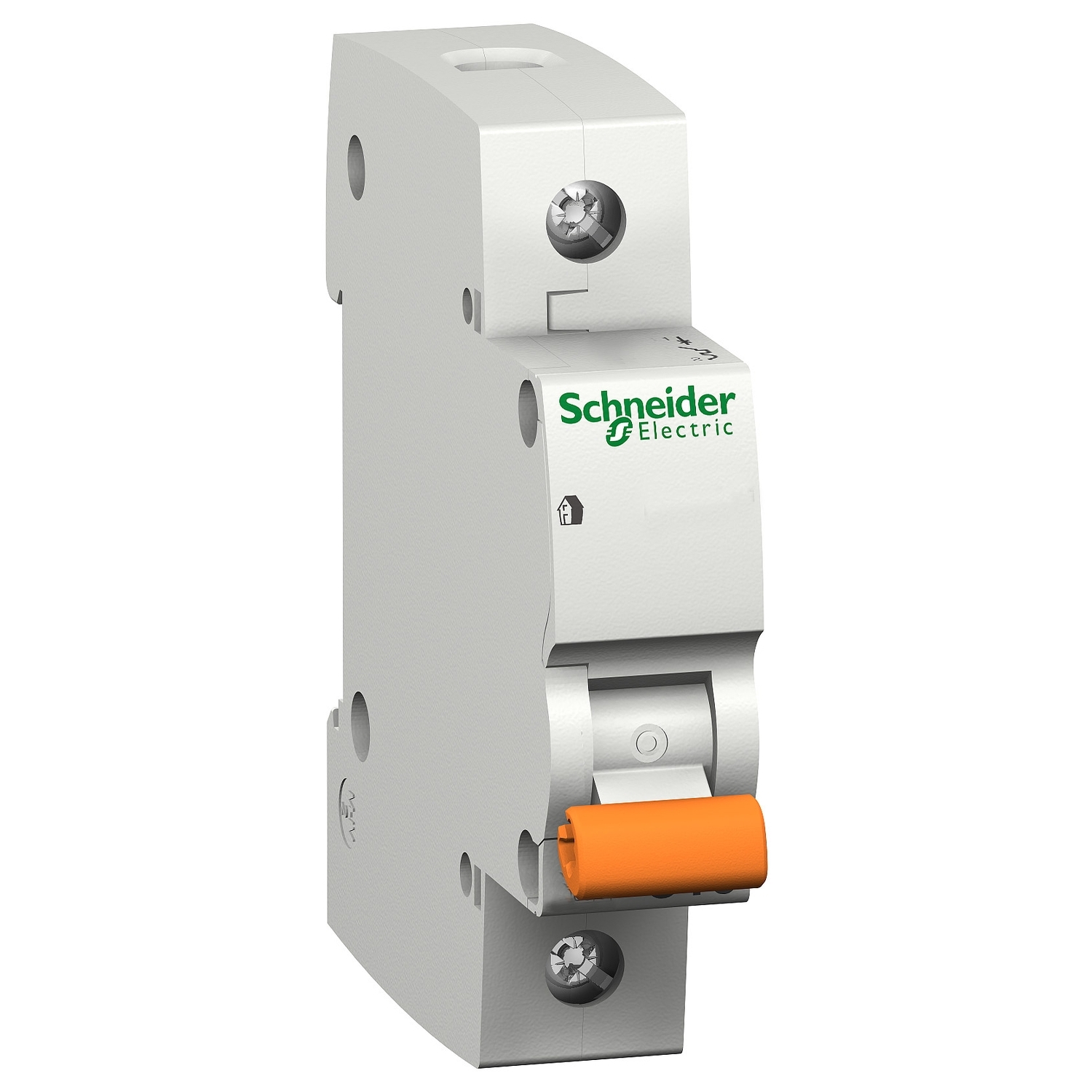

MCB

A complete range of miniature circuit breakers and comb busbars for the residential market

Fitur Utama

1. Breaking capacity (Icn) :
- Ph/N: 6000 A
- Ph/Ph AC: 6000 A

2. Voltage rating (Ue): 230/400 V AC

3. Operating frequency: 50/60 Hz

4. Degree of protection (IEC 60529):

- Device only: IP20

- Device in modular enclosure: IP40

5. RoHS 2003 compliant

6. Tropicalisation (IEC 60068-1): Treatment 2 (relative humidity 95 % to 55°C)

7. Operating Temperature: -25°C to +60°C

8. Storage temperature: -40°C to +70°C
