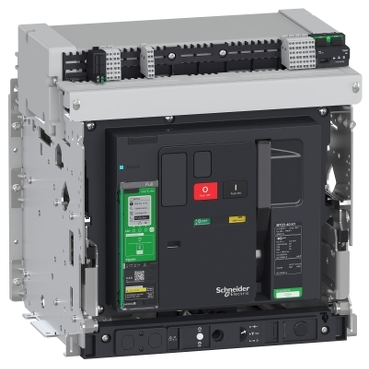

MasterPact MTZ
breaker
MasterPact MTZ
MasterPact MTZ adalah rangkaian lengkap pemutus sirkuit udara yang dirancang untuk melindungi sistem kelistrikan dari kerusakan yang disebabkan oleh kelebihan beban, korsleting, dan gangguan ground peralatan. MasterPact MTZ menyematkan teknologi digital canggih dan unit kontrol MicroLogic X yang membantu berkontribusi pada keselamatan dan efisiensi energi.
Specification
- Rated current: 800 to 6300 A
- Breaking capacity: 42 to 150 kA at 220/415 V AC
- Voltage rating: up to 1000 V AC
- 3 physical sizes: MasterPact MTZ1 from 630 to 1600 A; MasterPact MTZ2 from 800 to 4000 A; MasterPact MTZ3 from 4000 to 6300 A
- Draw out and fixed mount
- 3 pole and 4 pole construction
- Optimized selection of 4 advanced MicroLogic X control units integrating current, voltage, power and energy metering, enabling earth leakage protection, and customizable with digital modules for advanced protection, measurement, energy management and network analysis functions
- Built-in Class 1 accuracy active power and energy measurement
- Switch disconnectors version available
- Optimized range of field-installable auxiliaries and accessories
- Different offers complying with international standards: IEC 60947, UL489, ANSI/UL1066
- CCC, EAC and other local certifications
- Compliance with specifications of marine classification companies: Bureau Veritas, Lloyd’s Register of Shipping, Det Norske Veritas, etc.
